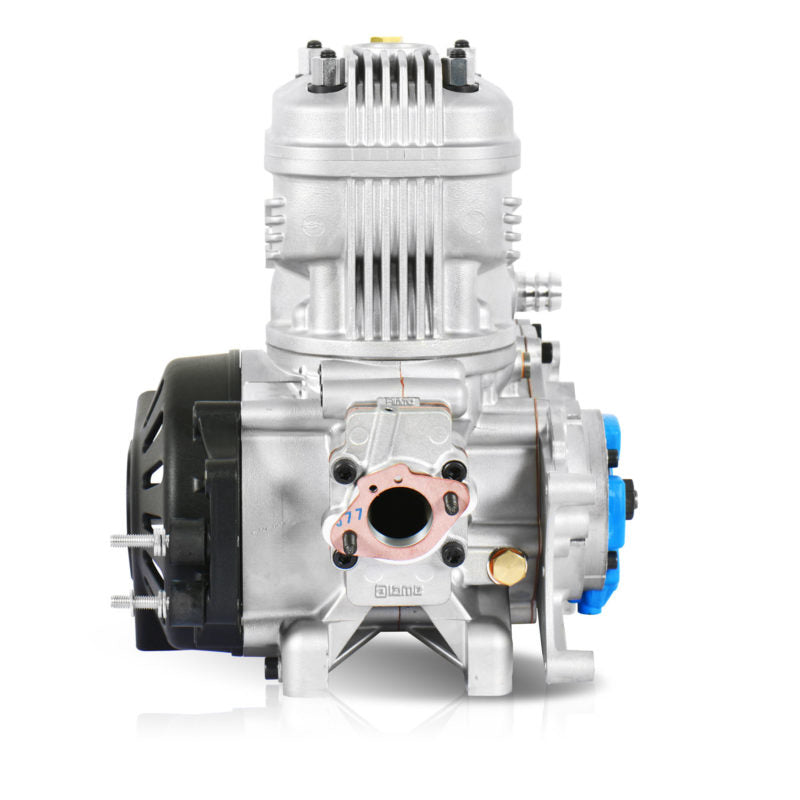

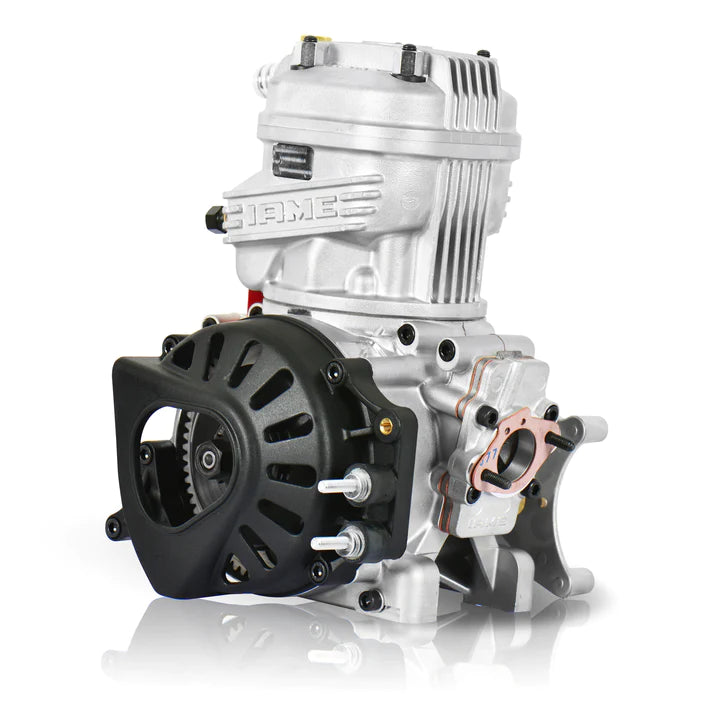

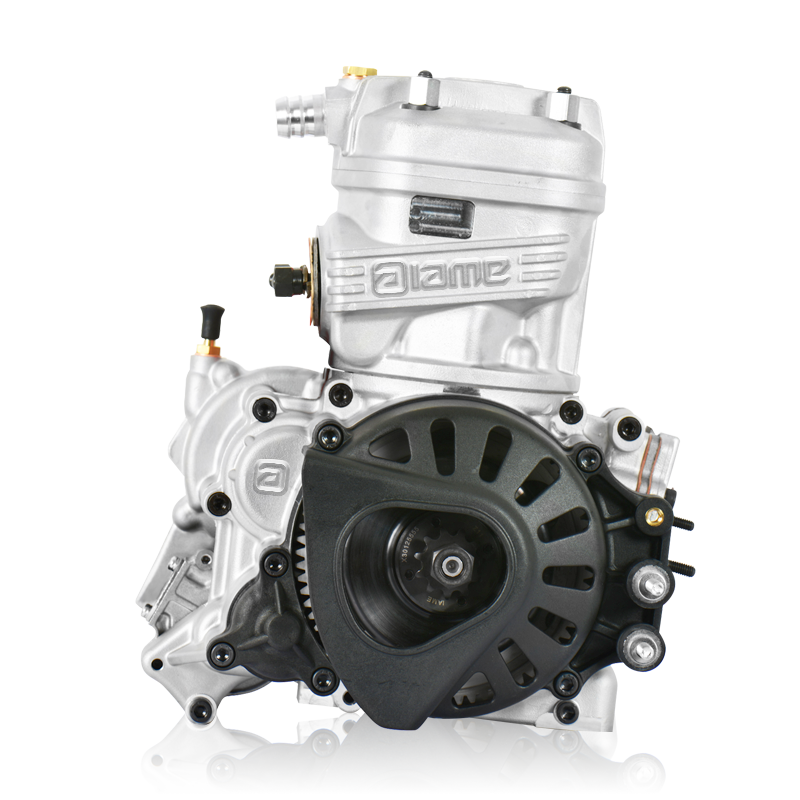

X30 Engine Complete
All the parts of the X30 engines are manufactured by latest generation numerical control machining centers, this translates into an extreme accuracy of the sensitive dimensions.
IAME high quality standards guarantee the Drivers with the zeroing of any performance difference among the engines and with the absolute certainty of competing on the track on equal terms with all opponents.
The X30 units are Ready To Race just like the World Champions engines, the result of decades of experience in manufacturing Karting IAME engines.

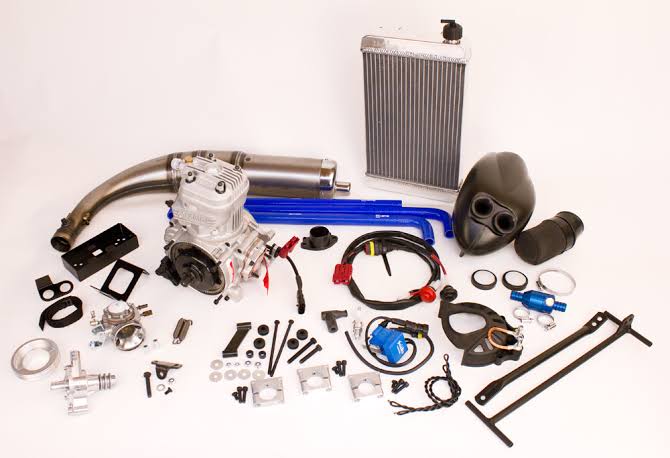

Engine is supplied fully complete (AUD) $3,995.00 RRP.
Technical Specifications:
- Engine Type: single cylinder – 2 stroke
- Bore: Ø 54.00 mm
- Max Bore: Ø 54.28 mm
- Stroke: 54.00 mm
- Displacement: 123.67cc (125cc max)
- Carb. Model: Tillotson HW-27A
- Inlet System: reed valve
- Lubrication: oil mixture 4%
- Ignition System: digital with battery charger
- Transmission: dry centrifugal clutch
- Cooling System: water cooled
- Starting: on-board electric starter
- Max Power: 28 Hp (21 Hp ) at 11.750 Rpm
- Max Torque: 17 Nm (13Nm) at 10.750 Rpm
- Max RPM Limit: 16.000 Rpm (Rpm limiter)
*Please note photo has incorrect airbox, The Australian spec airbox will be supplied with the kit
